51/105 PVC Screw Barrel: Complete Guide to Design, Uses, and Benefits

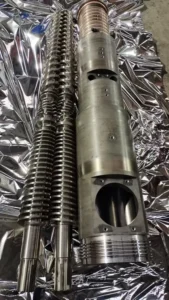

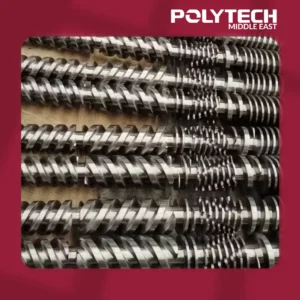

51/105 PVC Screw Barrel
The 51/105 PVC screw barrel is one of the most essential components in modern PVC extrusion technology. It is specifically engineered to process polyvinyl chloride (PVC) efficiently, ensuring stable production, consistent melting, and precise shaping of final products. The designation 51/105 refers to the geometric ratio of the conical twin screw barrel, making it ideal for medium- to large-scale PVC production lines. With this screw barrel, manufacturers achieve superior product quality in applications ranging from pipes to profiles and sheets.
PVC Screw Barrel for Extrusion Machine
A PVC screw barrel for extrusion machine functions as the heart of the extrusion system. Its role is to transport raw PVC powders and additives from the hopper, through heating and compression zones, until they are fully plasticized and ready for shaping. The screw’s spiral flights provide continuous mixing, while the barrel maintains the necessary temperature and pressure balance. This harmony guarantees smooth material flow, high throughput, and defect-free products, even under demanding production schedules.
51/105 PVC Extruder Screw Barrel
The 51/105 PVC extruder screw barrel is designed for both efficiency and durability. With its conical twin-screw geometry, it achieves higher levels of material compaction and improved plasticization. This size is widely favored because it balances energy efficiency, material throughput, and long-term wear resistance. The barrel and screws are typically manufactured from high-alloy steels, heat-treated for hardness, ensuring resistance to abrasion, corrosion, and the chemical aggressiveness of PVC compounds.
Conical Twin Screw Barrel for PVC
The conical twin screw barrel for PVC is vital in achieving homogeneity during plasticization. Its unique conical design allows material to be compressed gradually, increasing the shearing and mixing effect. This ensures that PVC powder blends evenly with stabilizers and plasticizers, preventing burning or incomplete melting. The result is a melt with superior uniformity, which directly translates into products with excellent strength, surface finish, and dimensional accuracy.
PVC Pipe Extrusion Screw Barrel
When it comes to pipe production, the PVC pipe extrusion screw barrel plays a critical role. Its geometry is optimized for maintaining a consistent wall thickness, ensuring that pipes can withstand internal pressure, environmental stress, and long-term use. Whether producing small-diameter pipes for electrical conduits or large-diameter pipes for water and sewage systems, this screw barrel ensures uniform quality across every length.
Screw Barrel for PVC Profile Extrusion
The screw barrel for PVC profile extrusion is used in manufacturing complex cross-sections such as window frames, door profiles, and decorative trim. The key requirement here is stability: profiles must retain their shape and dimensional accuracy throughout production. The screw barrel achieves this by ensuring consistent melting and pressure distribution, preventing defects like warping, surface streaks, or voids in the final product.
PVC Extrusion Machinery
High-performance PVC extrusion machinery depends on precision screw barrels. Without a well-engineered screw and barrel system, even advanced extrusion lines cannot deliver consistent results. The 51/105 PVC screw barrel optimizes machine performance by improving melt quality, reducing energy consumption, and minimizing wear on mechanical parts. This translates into greater productivity and lower long-term operating costs for manufacturers.
PVC Screw Barrel Design
The PVC screw barrel design is highly specialized. Critical parameters such as screw diameter, compression ratio, channel depth, and barrel hardness are all engineered to suit PVC’s processing behavior. A properly designed screw barrel ensures gradual melting, prevents thermal degradation, and allows uniform pressure build-up. The design also incorporates wear-resistant alloys or bimetallic liners inside the barrel to extend service life under continuous high-load operation.
Twin Screw Barrel for PVC Pipe Production
The twin screw barrel for PVC pipe production is especially effective in high-capacity pipe extrusion lines. The synchronized rotation of the two screws maximizes shearing, which guarantees complete dispersion of fillers and additives within the PVC melt. This results in pipes with superior mechanical strength, higher resistance to pressure, and smooth inner and outer surfaces that reduce friction and improve flow characteristics.
PVC Profile Production Screw Barrel
The PVC profile production screw barrel is designed for continuous and precise extrusion of profiles with intricate designs. Since profiles must maintain dimensional stability, the screw barrel ensures accurate control of melt flow. Its ability to handle variations in formulations makes it versatile for different PVC compounds used in construction, automotive, and furniture industries.
Advantages of 51/105 Screw Barrel
The advantages of the 51/105 screw barrel are numerous:
- Efficiency: High production output with lower energy consumption.
- Durability: Excellent wear and corrosion resistance thanks to advanced metallurgy.
- Versatility: Suitable for pipes, sheets, cables, and profiles.
- Stability: Consistent performance across long production runs without quality loss.
- Cost-effectiveness: Reduced downtime and longer service life mean lower operational costs.
Screw Barrel for PVC Sheet Extrusion
Producing flat sheets requires extreme precision, and the screw barrel for PVC sheet extrusion is tailored for this purpose. It guarantees uniform thickness across the entire sheet width, smooth surface finishes, and stable mechanical properties. The sheets produced are widely used in advertising boards, cladding, and interior decoration, where appearance and dimensional stability are critical.
PVC Screw Barrel Maintenance
Routine PVC screw barrel maintenance is crucial for ensuring long-term reliability. Regular cleaning of the screw flights prevents material build-up, while periodic inspection for wear or cracks helps avoid unexpected breakdowns. Using proper lubricants and monitoring operating temperatures also extend service life. Well-maintained barrels not only improve efficiency but also reduce the risk of product defects and costly downtime.
PVC Screw Barrel Applications
The PVC screw barrel applications are wide-ranging. It is used in:
- Pipe production (water, sewage, and electrical conduits).
- Profile extrusion (windows, doors, furniture trim).
- Sheet extrusion (advertising boards, construction panels).
- Cable coating (insulation for electrical wires).
Difference Between 51/105 PVC Screw Barrel and Other Sizes
The 51/105 PVC screw barrel is often compared with larger sizes such as 65/132 or 80/156. While larger screw barrels can handle higher volumes, the 51/105 size strikes a balance between output and energy consumption. It is ideal for manufacturers who need flexibility—capable of producing both medium-sized pipes and complex profiles without requiring oversized equipment.
Advantages of Using 51/105 PVC Screw Barrel in PVC Pipe Production
Using a 51/105 PVC screw barrel in pipe production offers several key benefits:
- Greater control over wall thickness.
- Improved strength and pressure resistance in finished pipes.
- Reduced energy costs due to optimized screw geometry.
- High consistency, minimizing rejection rates.
For pipe manufacturers, these advantages translate into reliable production and stronger, longer-lasting products.
Conclusion
The 51/105 PVC screw barrel is far more than just a machine part—it is the backbone of PVC extrusion technology. Its unique design and durability allow it to deliver consistent performance across pipes, profiles, and sheets. With proper design, maintenance, and application, it ensures high efficiency, superior product quality, and long-term cost savings. For any manufacturer in the PVC industry, the 51/105 screw barrel remains a proven choice for reliable and efficient production.
