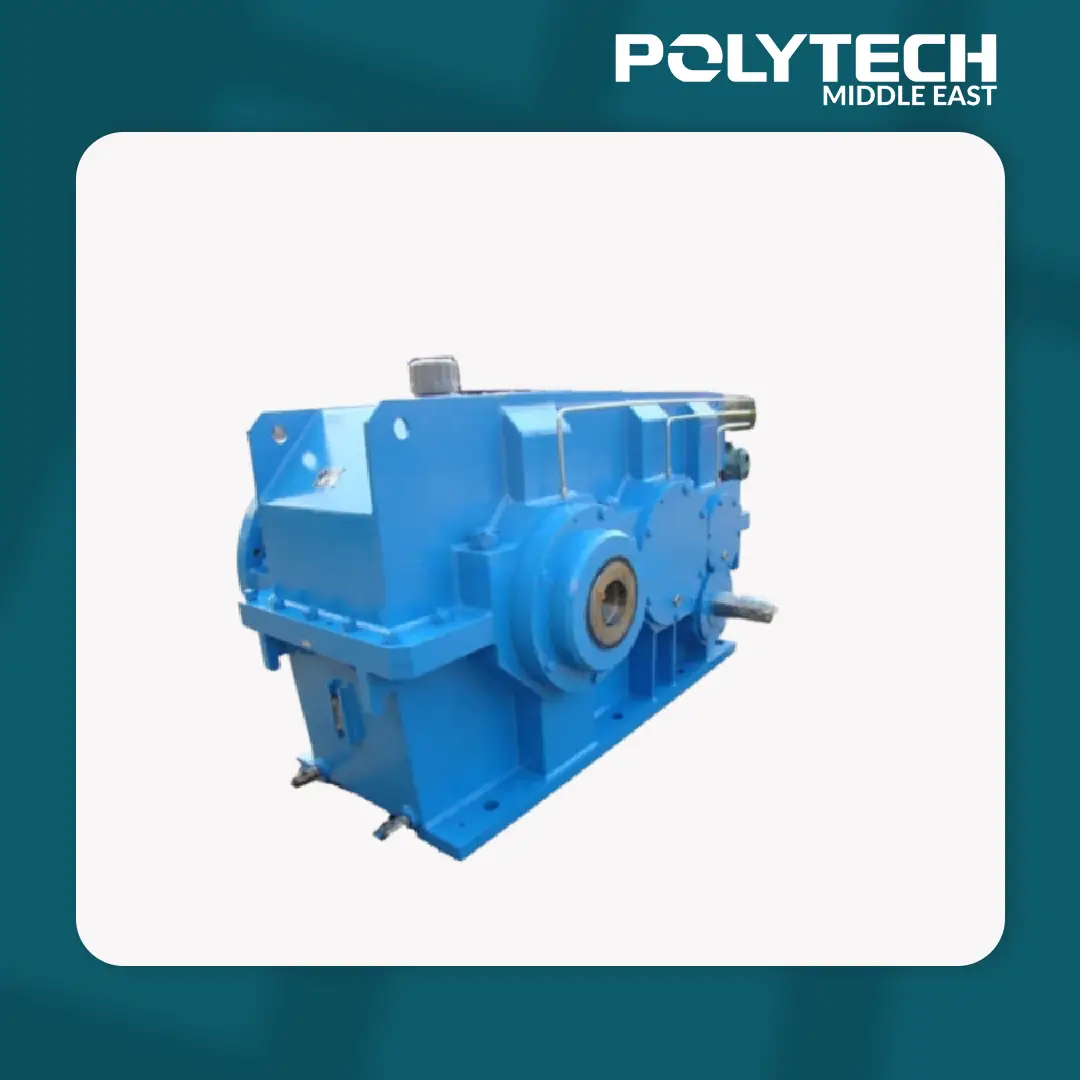

Twin Screw Extruder Gearbox

Twin Screw Extruder Gearbox

The SZ series double-screw extruder gearbox is a specialized mechanical drive system designed to complement conical double-screw extruders. This gearbox reduces the speed and amplifies the torque from the main motor before transferring it to the long shaft of the distribution box. The long shaft drives the short shaft through a pair of slender conical screw gears with a 1:1 drive ratio. Both the long and short shafts operate the screws at identical angles, facilitating outward rotation in opposite directions to ensure the production of high-quality extruded products.

Category ->

Description

The Twin Screw Extruder Gearbox is a vital component in plastic extrusion machinery, designed to deliver precise torque and speed control for optimal performance. Engineered with high-strength alloy steel and advanced manufacturing techniques, this gearbox ensures reliable operation, even in heavy-duty industrial applications. Its compact design, high load capacity, and efficient operation make it an ideal choice for extrusion processes in the plastic industry.

Twin Screw Extruder Gearbox Details

  • Applicable Industries: Plastic Processing
  • Gearing Arrangement: Helical
  • Output Torque: 375~519,520 Nm (customizable)
  • Input Speed: 600~1500 rpm
  • Output Speed: 14-280 rpm
  • Material: High-Strength Alloy Steel
  • Certification: ISO9001-2008, SGS
  • Warranty: 12 Months
  • Color: Customized

Key Features

  1. High-Quality Construction:

    • Made from high-strength alloy steel for exceptional durability.
    • Gears are carburized, quenched, and heat-hardened for long-lasting performance.
  2. Precision Engineering: Gear grinding achieves a precision of grade 6 (GB10095-88), ensuring smooth operation.
  3. Compact Design: Small in size but with high load-carrying capacity, making it suitable for space-constrained setups.
  4. Low Noise Operation: Designed for quiet and stable performance.
  5. Energy Efficiency: High efficiency reduces energy consumption in extrusion processes.

Applications

  1. Plastic Extrusion Machines: Ensures reliable torque and speed control for extrusion lines.
  2. Injection Molding Systems: Enhances performance and efficiency in molding processes.
  3. Material Handling Equipment: Powers conveyor systems and other machinery in industrial setups.
  4. Compounding Machines: Delivers consistent performance for plastic mixing and compounding.

Benefits

  • Enhanced Productivity: Delivers high torque and efficient power transmission for smooth operation.
  • Durability: Advanced materials and treatments extend the gearbox’s lifespan.
  • Customization Options: Gearboxes can be tailored to specific machine requirements, ensuring perfect compatibility.
  • Low Maintenance: Minimal upkeep required thanks to precision engineering and robust materials.

Maintenance Tips

  1. Regular Lubrication: Check and refill oil levels periodically to prevent wear.
  2. Inspect for Alignment Issues: Monitor the alignment of gears to avoid operational disruptions.
  3. Clean Regularly: Remove dust and debris to ensure efficient heat dissipation.
  4. Monitor for Noise or Vibration: Unusual sounds or movements may indicate wear or alignment issues.
  5. Schedule Periodic Overhauls: Conduct professional inspections to identify and resolve potential issues proactively.

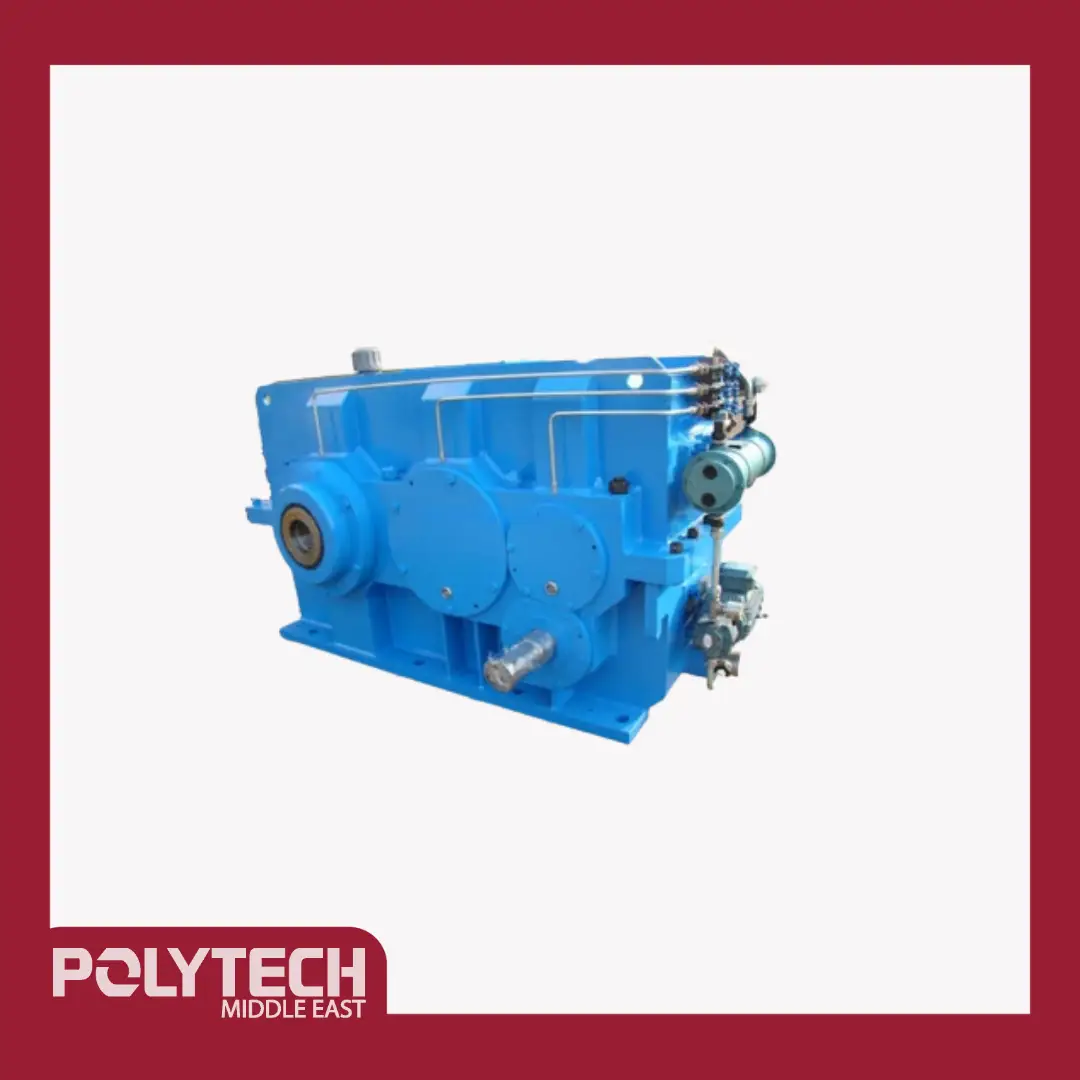

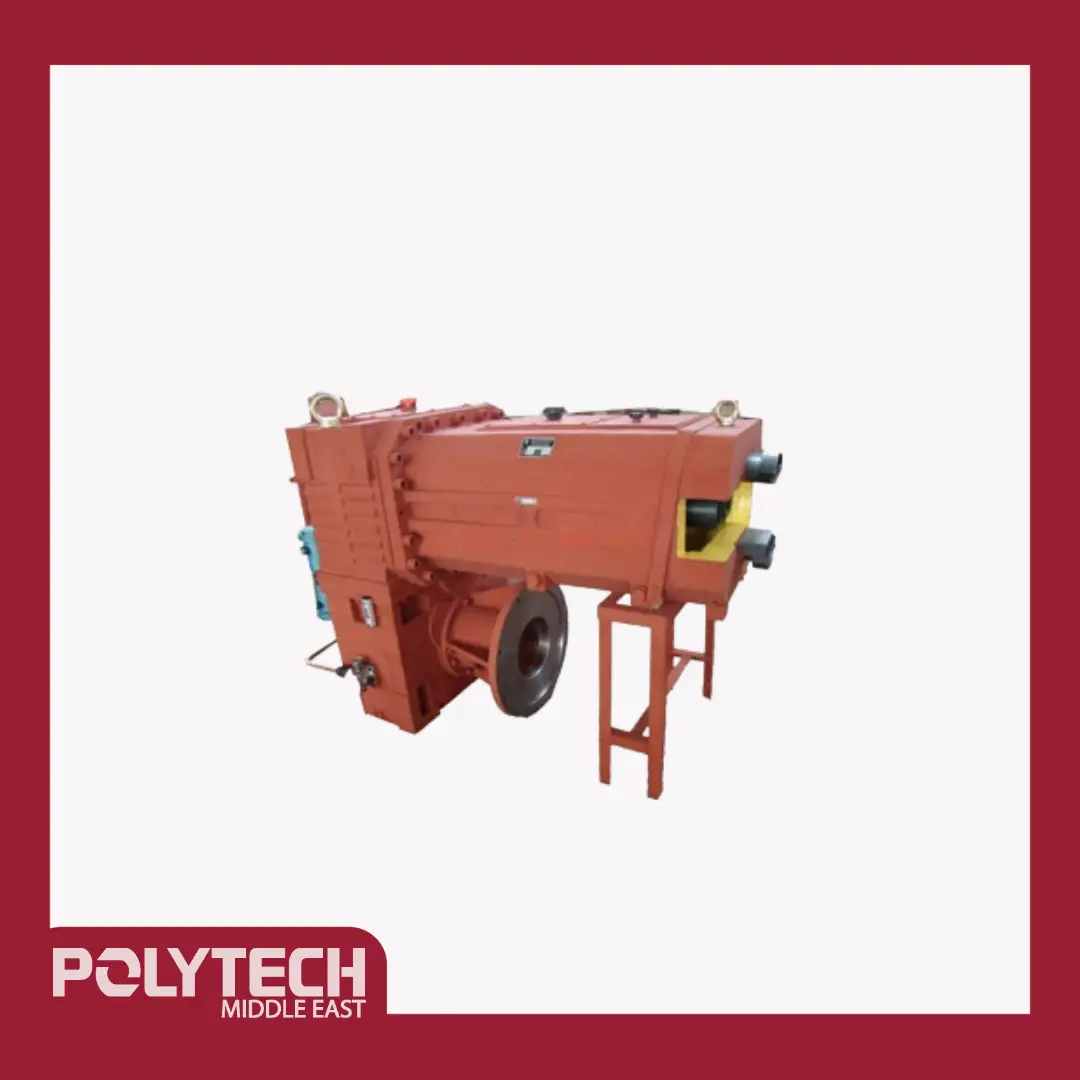

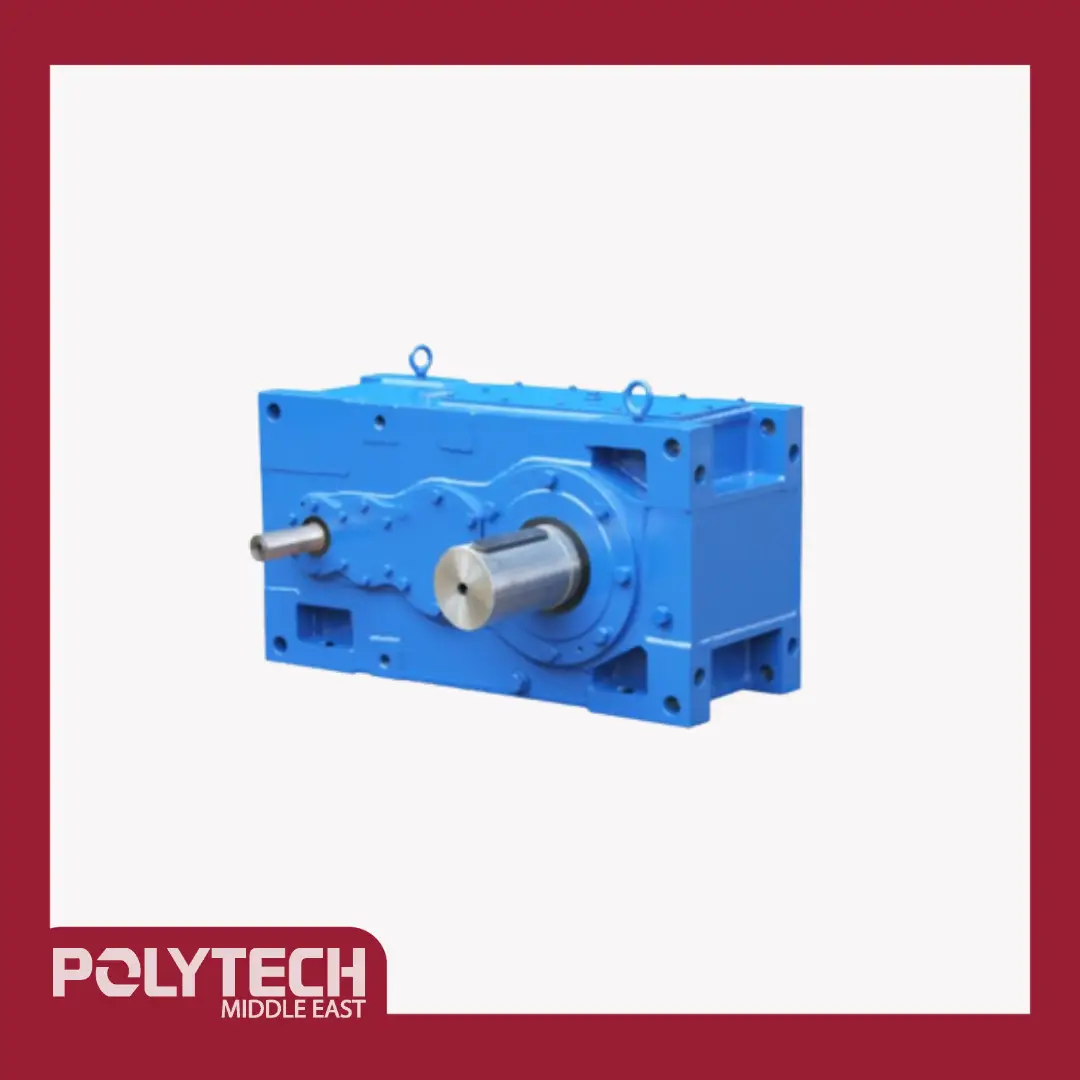

Product Gallery

Technical Parameters

Screw Diameter (mm) 35 45 50 55 65 80 92
Output Power (kW) 11 18.5 22 30 37 55 110
Output Speed (rpm) 47 45 38 38 39 39 40
