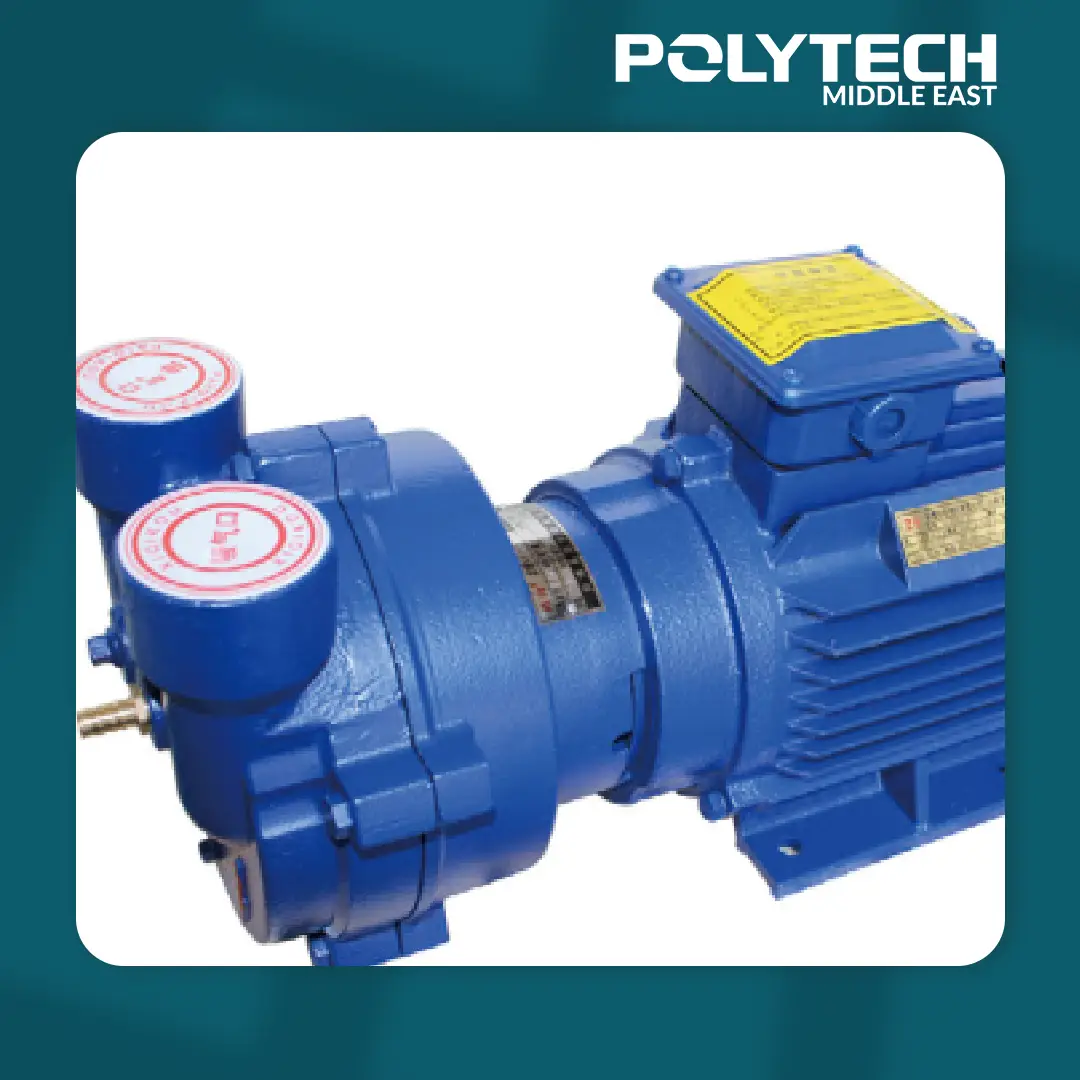

3.85 kW Vacuum Pump

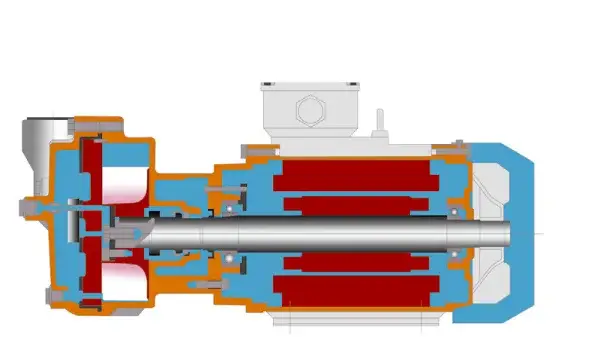

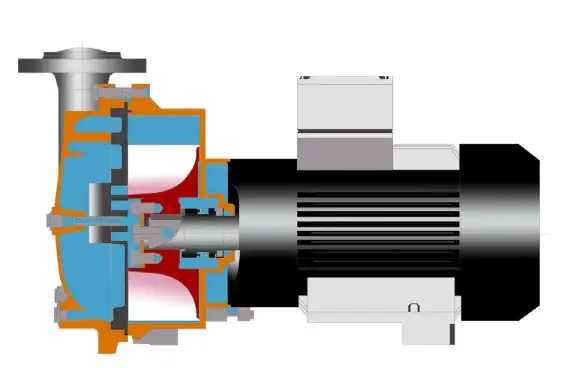

3.85 kW Vacuum Pump is a high-performance liquid ring pump designed for industrial applications. It utilizes water or another liquid as a sealing medium to generate a vacuum by rotating an impeller within an elliptical casing. Known for its compact design, low maintenance, and energy-efficient operation, this pump is widely used in vacuum distillation, drying, degassing, and material handling. It effectively processes both dry and wet gases, making it a versatile and reliable choice across various industries.

Key Features and Applications of the 3.85 kW Vacuum Pump

• Liquid Ring Design uses water or other sealing fluids to create a stable vacuum
• Compact & Durable Construction allows easy integration into industrial systems
• Low Maintenance & Energy Efficient design reduces operational costs
• Versatile Performance suitable for vacuum distillation, drying, degassing, and material handling
• Handles Both Dry and Wet Gases ensuring adaptability across multiple industries

What is a 3.85 kW Vacuum Pump?

A 3.85 kW vacuum pump is a mechanical device designed to extract air and gases from a sealed chamber, creating a vacuum necessary for various industrial processes. The 3.85 kW rating refers to the motor power, reflecting its energy consumption and operational efficiency. This power level makes it an ideal choice for medium to large-scale industrial tasks, such as plastic extrusion, where stable vacuum levels are required for optimal performance.

How Does a 3.85 kW Vacuum Pump Work?

A vacuum pump functions by creating a pressure difference, allowing it to remove air and gases from a sealed system. The 3.85 kW motor powers the pump mechanism, which varies based on the pump type (e.g., rotary vane, liquid ring, or diaphragm pump). The process consists of several key stages:

1. Material Feeding and Melting

• Plastic raw materials (pellets, granules, or powder) are fed into the extruder
• The material is heated and melted as it moves through the extruder barrel, forming molten plastic

2. Extrusion Through the Die

• The molten plastic is forced through a die, shaping it into pipes, sheets, films, or profiles
• At this stage, air bubbles or trapped gases may be present in the material

3. Vacuum Application in Cooling and Shaping

• The extruded plastic moves into a vacuum calibration tank or cooling chamber
• The 3.85 kW vacuum pump creates a negative pressure (vacuum) that:
  • Removes air bubbles and trapped gases from the molten plastic
  • Ensures the plastic adheres precisely to the die or mold
  • Prevents defects like warping, uneven surfaces, or weak spots

4. Cooling and Solidification

• As the plastic moves through the vacuum chamber, it is cooled by water or air
• The vacuum ensures uniform cooling, which is essential for maintaining dimensional accuracy

5. Final Output

• The shaped and cooled plastic product exits the extrusion line, ready for cutting, packaging, or further processing
• The vacuum pump ensures the final product is defect-free and meets quality standards

Applications of 3.85 kW Vacuum Pumps in Extrusion Lines

1. Degassing and Deaeration

• Removes air bubbles and trapped gases from molten plastic
• Ensures smooth and uniform material flow

2. Cooling and Calibration

• Used in plastic profile and pipe production
• Ensures proper adhesion to the desired shape and dimensions

3. Plastic Film Production

• Helps maintain consistent thickness and prevents defects
• 3.85 kW capacity is ideal for high-output film extrusion lines

4. Sheet Extrusion

• Ensures flatness and uniformity of plastic sheets
• Works in conjunction with polishing rollers and cooling systems

5. Recycling Processes

• Used to remove moisture and contaminants from recycled plastic materials
• Provides the necessary vacuum power for high-demand applications

Benefits of Using a 3.85 kW Vacuum Pump in Extrusion Machines

1. Improved Product Quality

• Eliminates air bubbles and voids, ensuring a smooth surface
• Maintains consistent dimensions and structural integrity

2. Enhanced Production Efficiency

• Faster cycle times due to efficient vacuum removal
• Continuous operation without overheating

3. Energy Efficiency

• Optimized power consumption for cost-effective operation
• Lower energy costs compared to larger vacuum pumps

4. Versatility

• Suitable for various plastic processing applications
• Works with different plastic materials like PVC, PE, and PP

5. Reliable and Durable Performance

• Built from high-quality materials to withstand industrial conditions
• Low maintenance requirements reduce downtime and costs

6. Compact and Space-Saving Design

• Easy integration into existing extrusion systems
• Portable and lightweight options available

7. Precise Vacuum Control

• Maintains stable vacuum levels for superior product quality
• Adjustable settings for customized vacuum needs

8. Reduced Material Waste

• Minimizes defects and rejected products
• Higher production yield improves overall efficiency

9. Clean and Contamination-Free Operation

• Oil-free options available for contamination-sensitive industries
• Eco-friendly operation with minimal environmental impact

10. Cost-Effective Solution

• Affordable initial investment with long-term savings
• Reduces material waste and energy consumption

Why Choose a 3.85 kW Vacuum Pump for Plastic Extrusion?

A 3.85 kW vacuum pump is a critical component in plastic extrusion lines, offering power, efficiency, and reliability. Whether producing plastic films, pipes, sheets, or profiles, investing in a high-quality vacuum pump ensures:

• Defect-free products with improved quality
• Higher efficiency and reduced production costs
• Smoother operations and lower maintenance requirements

As the plastic manufacturing industry evolves, vacuum pumps remain essential for achieving precision and sustainability in production.
